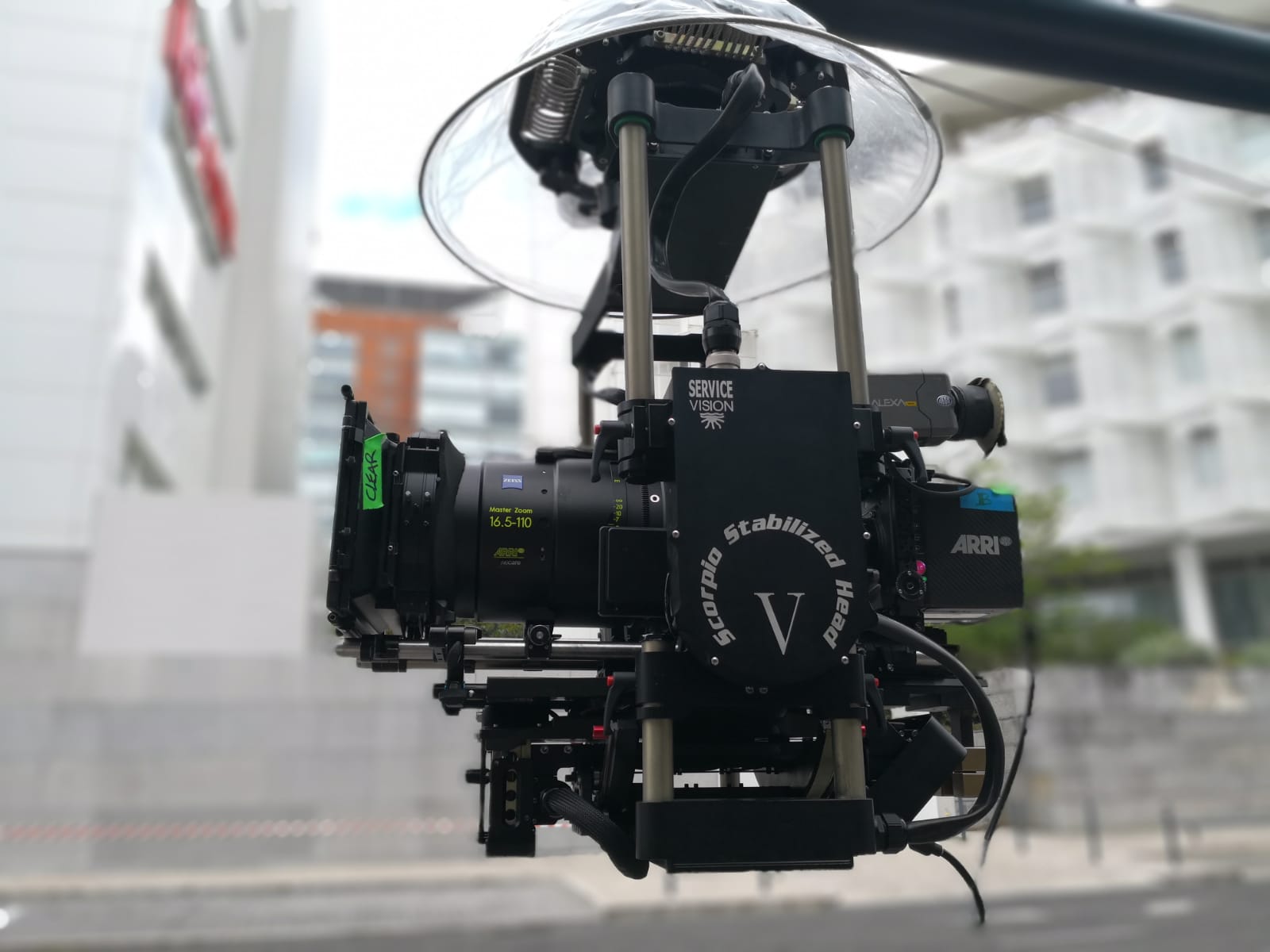

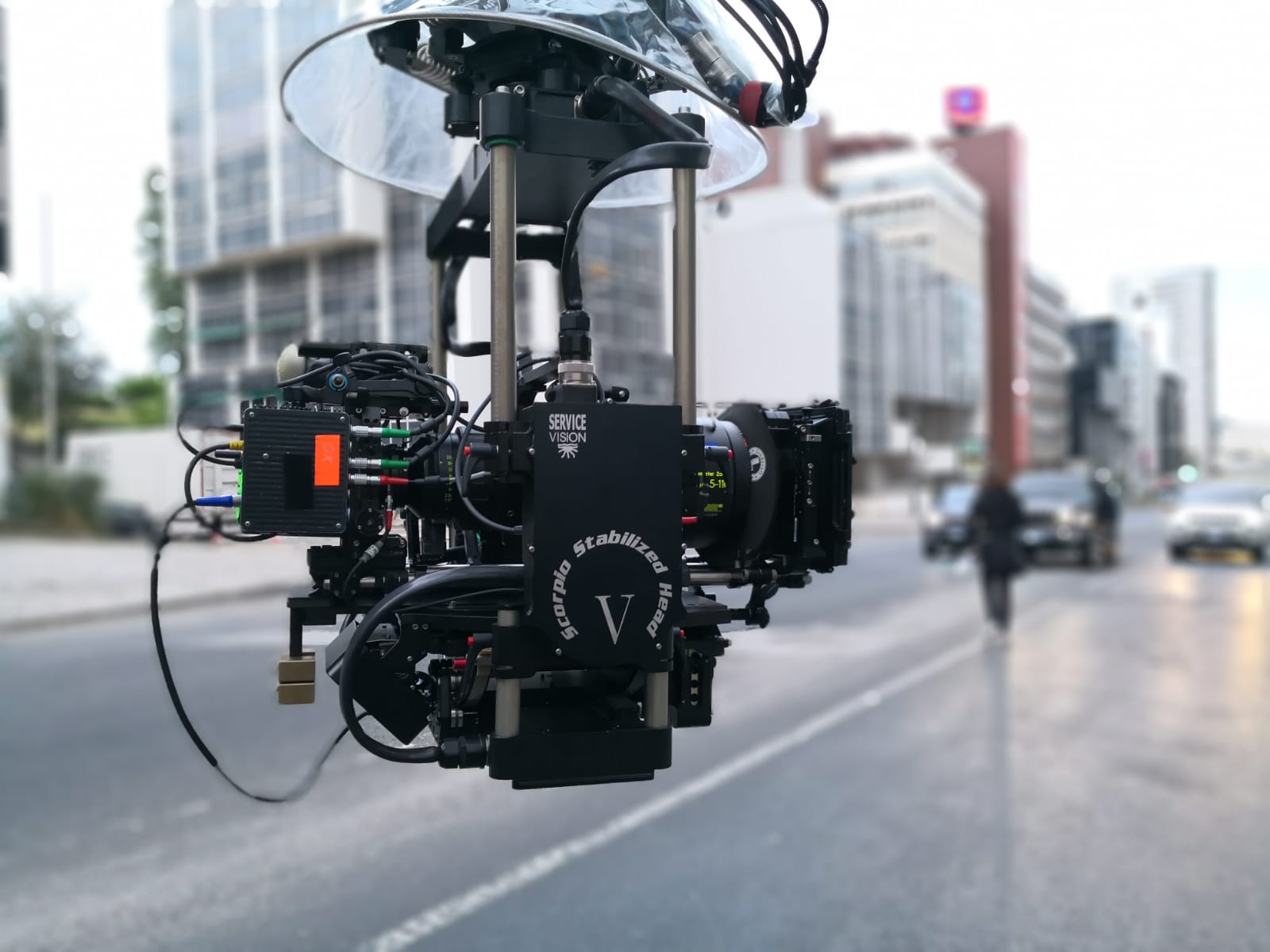

SCORPIO STABILIZED HEAD V
Roll over image to zoom in
La nueva cabeza estabilizada Scorpio está en un nivel superior en el mundo de la estabilización. Siguiendo los principios de su antecesora; el diseño de sus nuevos giróscopos, la mecánica y el nuevo software de control, permiten que sea más Rápida, más Fácil y, por supuesto más Efectiva.
Presentation
The New Scorpio Stabilized Head is a new level on the stabilization’s world. Following the principles of the previous Scorpio Stabilized Head, the design of the new gyros, new mechanics and new software allows to be Faster, Easier and, of course, more Effective..
Faster:
- Pan axis revolutions 360º in 3 seconds with HD slip rings to allow fast movements following the action.
- The new design with the axis sliding through bars allows to adjust the size of the head quickly.
- All the connections, covers and movements are protected for water allowing to work under humidity or rain without rain cover for the head.
Easier:
- The new method of control allows to be stable on the drift and easy to maintain the horizon with the new real horizon function.
Effective:
- The main thing in a Stabilized Head is the level of Stabilization. The New Scorpio Stabilized Head incorporates new mechanics and electronics designed in detecting a big range of frequencies of vibrations and with enough speed to correct faster than other heads. Is for that, the vibrations isolator becomes an accessory to use only in necessary cases.
Technical specifications
TECHNICAL SPECIFICATIONS
| Turn speed: | 320º/3 seconds |
| Axis movement: | PAN 360º / TILT 270ª
ROLL +/- 30ª |
| Head weight: | 33kg / 72 lbs |
| Max. Payload: | 45kg / 100lbs |
| Voltage requirements: | 30V DC |
| Standby consumption: | 800 mA |
| Max. amperage: | 10 A |
| Max. usable focal lens: | 300 mm |
| Setup time: | Same as Standard Scorpio Stab Head |
| Water resistant |
The Scorpio Head can be controlled by:
- Cable up to 500 m (1500pies)
- Radio using the Scorpio Radio system.
Features
FEATURES
The New Scorpio Stabilized Head provides:
- Power for all film and video cameras.
- Two lines: 1 video – 1 HD.
- Power for witness camera.
- Power supply for Scorpio Focus or other popular Lens Control.
- Three control systems are available:
- Hand wheels.
- Joystick.
- Pan Bar(JDR).
- Programmable limits,Damping and Speed ajustement for all axes.
- Back PAN: Automatic
- Real Horizon.
- Diferent vibrations are available.
